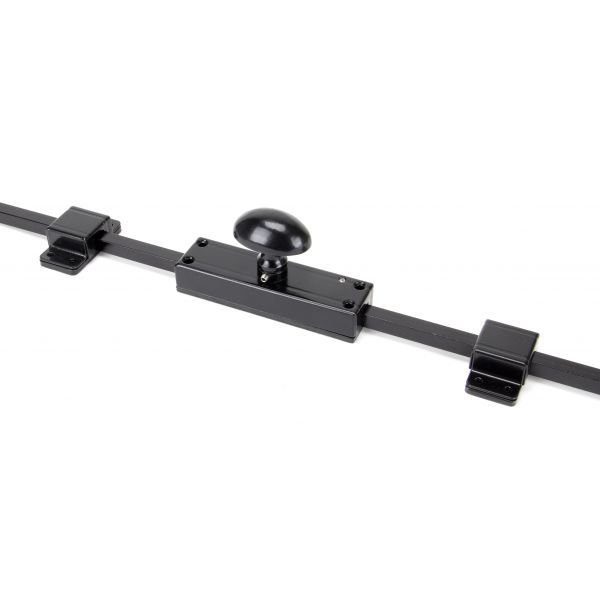

Black Cremone Bolt

DIMENSIONS

Overall Height: 2045mm
Maximum Door Height: 2020mm
Maximum Throw: 25mm

Centre Case Size: 130mm x 35mm
Knob Size: 54mm x 37mm
Knob Projection: 48mm

Receiver Bridge: 62mm x 34mm
Angled Keep: 51mm x 25mm
Flat Keep: 51mm x 25mm
